Sailboat Solar Installation in San Diego: 300W Bimini Solar and Starlink Mini Upgrade
Sailboat Solar Installation in San Diego: 300W Bimini Solar and Starlink Mini Upgrade
Reliable power and internet connectivity are becoming essential for modern boat owners. Whether you're cruising the California coast, spending weekends at anchor, or working remotely from your sailboat, a properly designed solar and communications system can dramatically improve life onboard.
Recently, the team here at Upgrade Marine completed a custom solar and Starlink Mini installation on a 31-foot sailboat in San Diego. The goal was simple: maximize energy production and provide reliable internet connectivity while maintaining the clean appearance and functionality of the vessel.
The Challenge: Limited Space on a Small Sailboat
Unlike larger yachts that can accommodate solar arches or extensive hardtop installations, smaller sailboats often have limited space available for solar panels and communication equipment.
Our client wanted to:
Maximize solar charging capacity
Add reliable internet connectivity with Starlink Mini
Avoid bulky mounting structures
Maintain a clean, low-profile appearance
Integrate all equipment into the vessel's existing DC electrical system
Finding space for both a large solar panel and Starlink Mini required careful planning and custom fabrication.

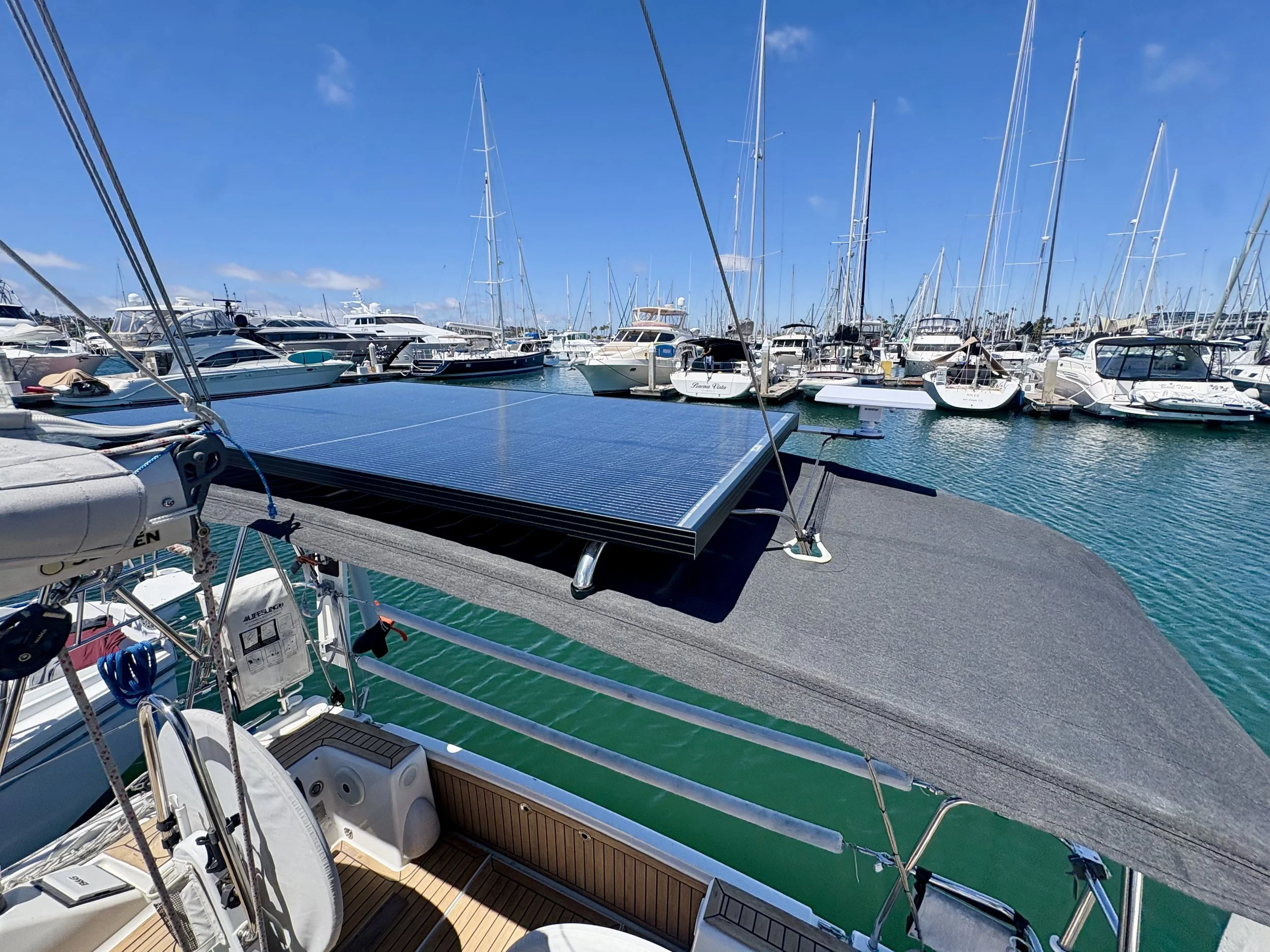

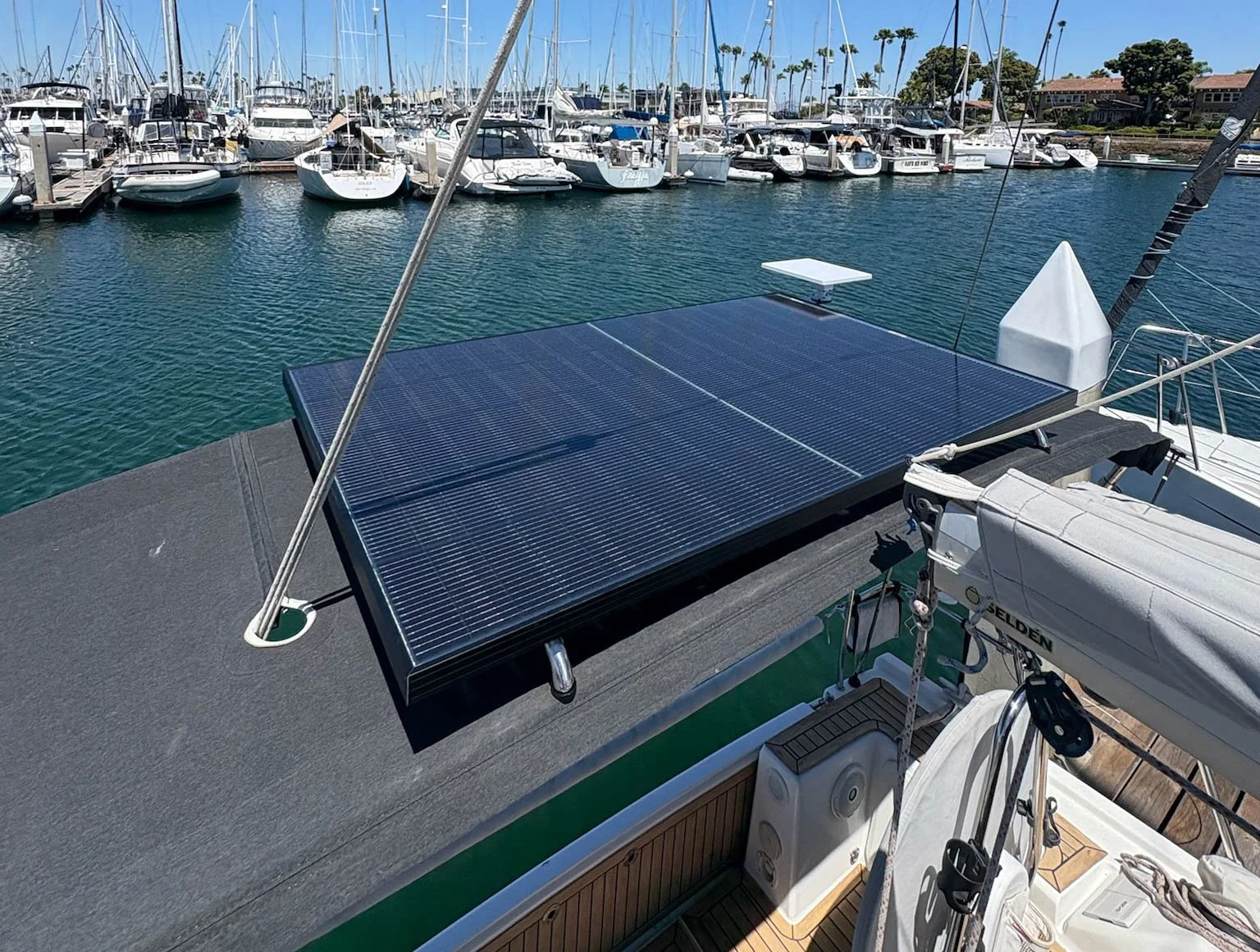

Custom Bimini-Mounted Solar Installation
To maximize available space, we designed and installed a custom mounting system that utilizes the vessel's bimini structure.
The result was a clean installation capable of supporting a 300-watt solar panel while preserving cockpit usability and maintaining an attractive appearance.
This location offered several advantages:
Excellent exposure to sunlight
Minimal shading throughout the day
Efficient use of otherwise unused space
No need for a stern arch or additional structure
Improved onboard energy production for extended cruising
For many sailboats, a custom bimini-mounted solar solution provides one of the best balances between performance, aesthetics, and cost.

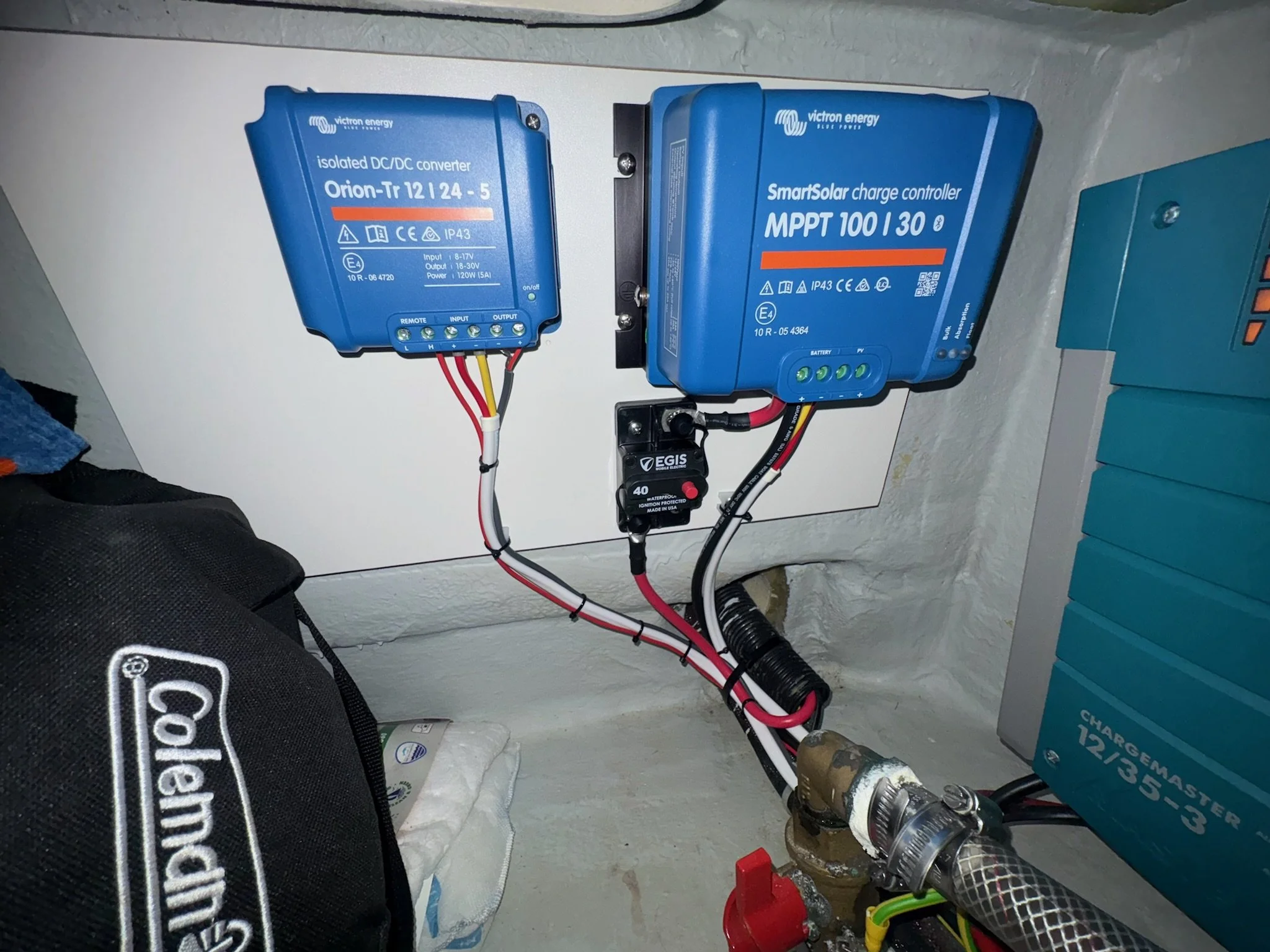

Victron SmartSolar MPPT Charge Controller
To maximize solar harvesting, the system was paired with a Victron SmartSolar MPPT charge controller.
Benefits include:
Higher charging efficiency
Bluetooth monitoring through the VictronConnect app
Industry-leading reliability for marine applications
Improved performance in changing weather conditions
Better battery charging performance
Victron Energy products continue to be among our preferred solutions for marine solar installations because of their reliability, monitoring capabilities, and proven performance in harsh marine environments.

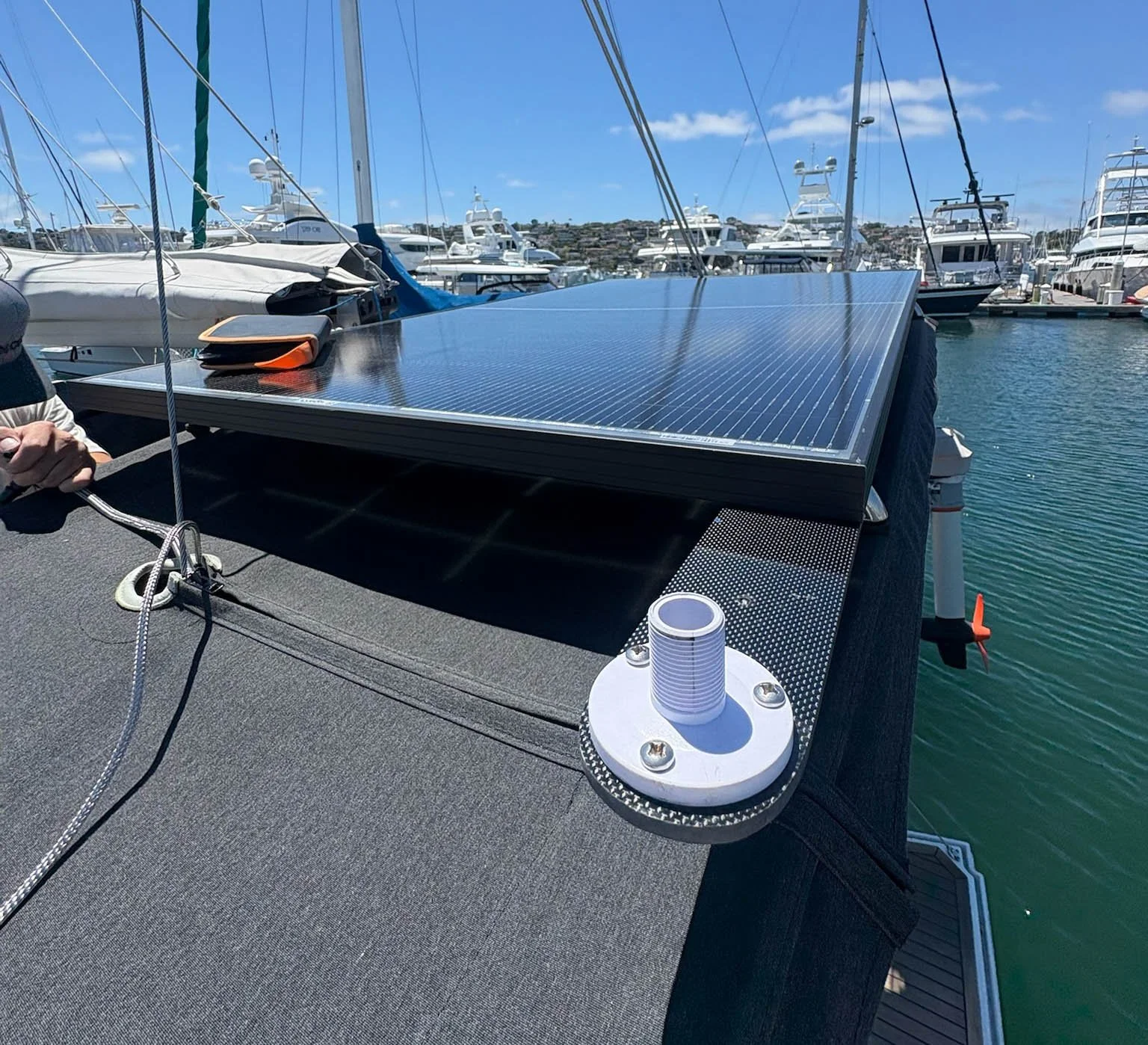

Custom Starlink Mini Installation
The owner also wanted reliable internet connectivity while cruising and at anchor.
To accomplish this, we fabricated and installed a custom carbon fiber mounting solution for the Starlink Mini.
The mounting location was selected to provide an unobstructed view of the sky while maintaining a clean appearance and minimizing interference with vessel operations.
The compact size of the Starlink Mini makes it an excellent option for sailboats where mounting space is limited.
Why We Powered Starlink Mini with 24V DC
One of the most overlooked aspects of a Starlink Mini installation is power system design.
Many installations simply power Starlink through an inverter, converting battery power from DC to AC before powering the Starlink power supply. While functional, this introduces unnecessary conversion losses and increases overall power consumption.
For this project, we integrated the Starlink Mini directly into the vessel's DC electrical system.
Using a Victron DC-DC converter, we stepped the vessel's 12V battery system up to 24V DC, which provides optimal operating voltage for the Starlink Mini.
This approach offers several advantages:
Improved power efficiency
Reduced inverter runtime
Lower overall energy consumption
Cleaner installation
Greater system reliability
For boats relying on solar power and battery storage, every amp-hour matters. Designing systems to operate directly from DC power can significantly improve overall energy efficiency.
The Finished System
The completed installation provides the owner with:
300W of solar charging capacity
Victron SmartSolar MPPT charging
Starlink Mini high-speed internet connectivity
Direct DC-powered operation
Custom carbon fiber mounting solution
Clean, low-profile installation
Improved onboard energy independence
Most importantly, the vessel gained substantial solar charging capability and reliable internet access without sacrificing appearance or requiring large structural modifications.
Professional Marine Solar and Starlink Installations in San Diego
At Upgrade Marine, we specialize in custom marine electrical systems, lithium battery upgrades, marine solar installations, Victron Energy systems, and Starlink installations for boats throughout San Diego and Southern California.
Every vessel presents unique challenges, and we design solutions that maximize performance while maintaining the appearance and functionality of your boat.
If you're considering marine solar, Starlink Mini, lithium batteries, or a complete electrical system upgrade, contact Upgrade Marine to discuss your project.
